Composite Panel
The Aluboard Composite Panels we offer you are a high quality product manufactured with the latest technology and innovative materials. Each detail is carefully designed and meticulously controlled during the production phase. These panels stand out with their wide usage areas and many advantages.

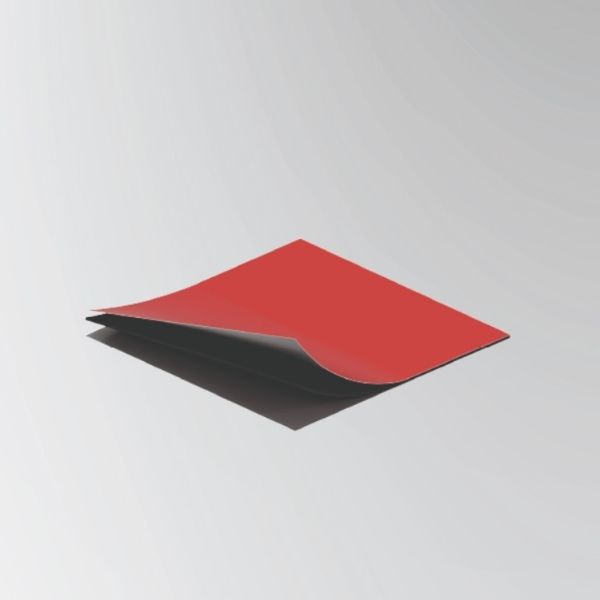

Aluboard Panels are produced by laminating the polyethylene material in the middle of two aluminum sheets. The aluminum on the front side is coated with Polyester paint and the back side is painted with epoxy polyester. This special design gives the product excellent protection and ensures a modern look.
The advantages of this product include its light weight, high strength and wide range of colors. It also provides a great advantage for users with its easy maintenance and simple cleaning.
The technical features of Aluboard Panels are also quite impressive. Panel thickness is 3 mm and panel width is offered as 1250 mm or 1500 mm. The standard panel length is 3200 mm and can be extended up to a maximum of 6000 mm. Aluminum thickness is 0.25 mm.
With these features, Aluboard Panels can be used in various applications. It is an ideal option for signboards, billboards and signs, as well as other industrial applications.
Layers | Thickness | Alloy | Paint |
Top Surface Aluminum | 0.25 mm | 3105 H26 | Polyester Painted |
Core | 3.50 mm | Polyethylene Filling | – |
Bottom Surface Aluminum | 0.25 mm | 3105 H26 | Epoxy Polyester Paint |
Layers | Thickness | Alloy | Paint |
Top Surface Aluminum | 0.25 mm | 3105 H26 | Polyester Painted |
Core | 2.50 mm | Polyethylene Filling | – |
Bottom Surface Aluminum | 0.25 mm | 3105 H26 | Epoxy Polyester Paint |
