Easy Assembly, Stylish Design and Maximum Comfort
Demountable Guillotine Glazing Systems
Teknik Alüminyum’s Demounted Guillotine Glazing Systems are an innovative system consisting of vertically moving glass panels that are remote controlled and motorized. This system, which is delivered disassembled, is user-friendly with the advantage of easy assembly and offers a stylish, modern and useful solution to spaces.
What is Demounted Guillotine Glazing System?
The disassembled guillotine glazing system is a glazing solution that is delivered in parts and offers easy assembly. This system, which can operate fully automatically or manually, provides the flexibility to use areas open or closed.
Easy installation, long-lasting material and aesthetic design make it an ideal solution for businesses and individual users.
Motorized Guillotine System
SH110
Attracting attention with its stylish and modern design, the system offers uninterrupted views.

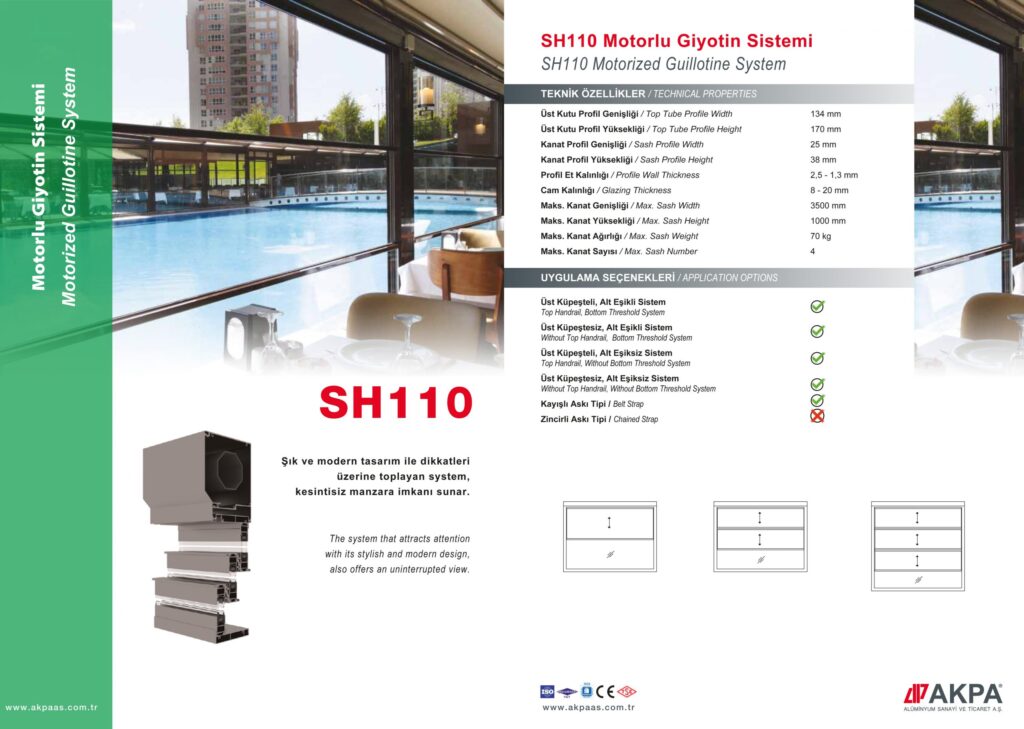

SH110 Motorized Guillotine System
- Top Box Profile Width / Top Tube Profile Width: 134 mm
- Top Box Profile Height / Top Tube Profile Height: 170 mm
- Sash Profile Width / Sash Profile Width: 25 mm
- Sash Profile Height / Sash Profile Height: 38 mm
- Profile Wall Thickness: 2.5 – 1.3 mm
- Glass Thickness / Glazing Thickness: 8 – 20 mm
- Max. Sash Width / Max. Sash Width: 3500 mm
- Max. Sash Height / Max. Sash Height: 3000 mm
- Max. Sash Weight / Max. Sash Weight: 70 kg
- Max. Sash Number / Max. Sash Number: 4
Teknik alüminyum
Advantages of Demountable Guillotine Glazing
Contact us for more information about our Demounted Guillotine Glazing solutions and to get a customized quote!
Easy Assembly
It is delivered in pieces and can be assembled quickly.
Automatic and Remote Controlled
It is extremely comfortable to use.
Heat and Sound Insulation
It increases the comfort of the space and saves energy.
Safe Use
It offers high security with durable rail systems and robust glass panels.
Areas of Use

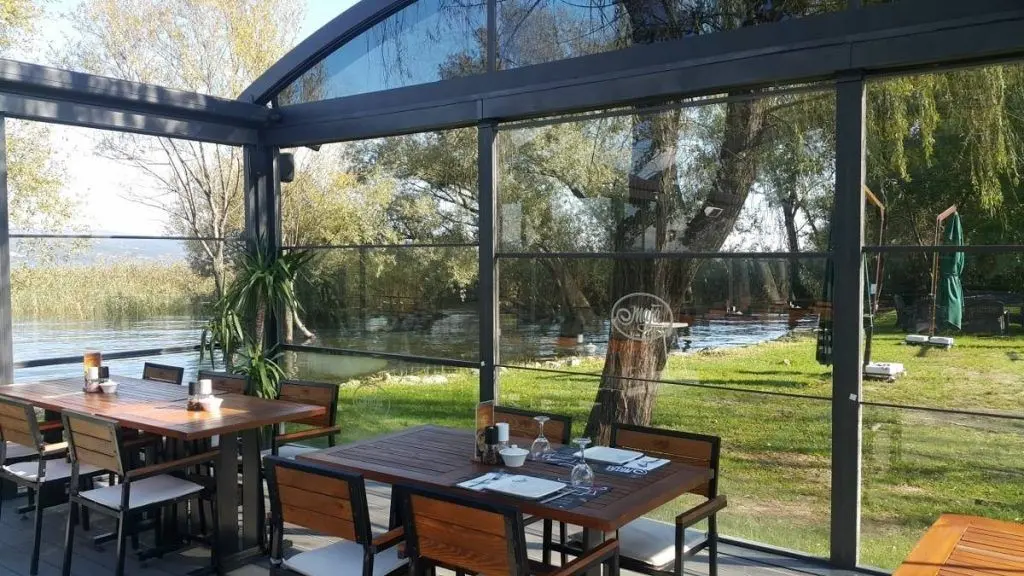

Cafes & Restaurants
It makes open spaces usable in all seasons.

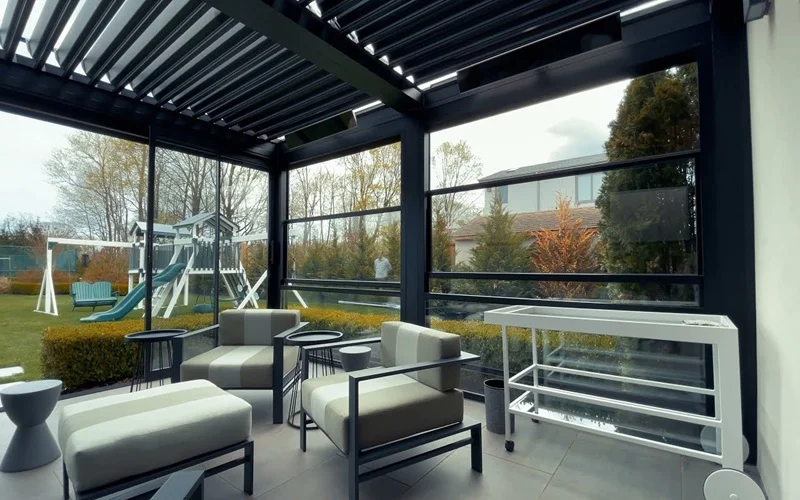

Teras & Balkonlar
It offers an ideal solution for houses and villas.
Hotels & Resorts
With their stylish and modern designs, they make open spaces more useful.
Office & Commercial Spaces
Creates a comfortable workspace.
