C-60

Door Window Systems | C-60

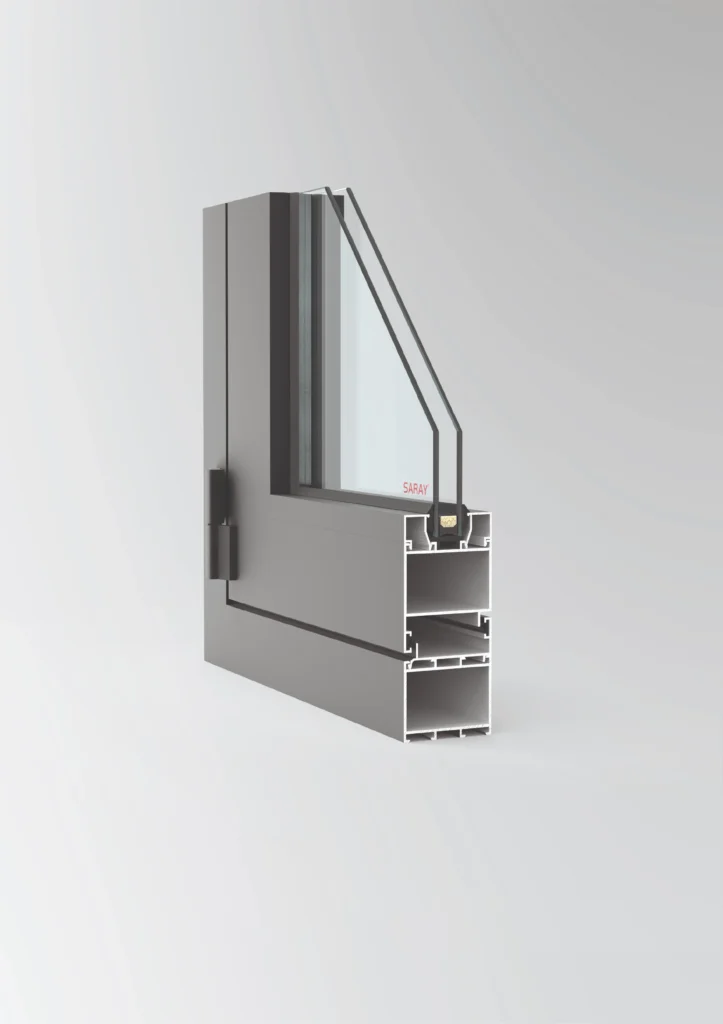

C 60

C 60 System is a preferred option for fixed window joinery and door applications in commercial areas such as shops and stores. With its barrier-free structure, it offers an ideal alternative especially for temperate regions.

With a 60 mm frame depth, this functional door, window and showcase system allows the use of inward opening windows, inward and outward opening doors as single wing or double wing, as well as swing doors. It is also a preferred system as a separator in interior spaces.

The double-sided application of the glazing bead provides convenience when glass replacement is required. The C 60 System consists of two different profiles with wall thicknesses ranging between 1.5 mm and 2.0 mm and allows the use of 13-38.5 mm thick glass in the system. With these features, it offers a wide range of flexibility and convenience to users.

Technical Specifications

Visible Width (Fixed)36 mm
Apparent Width (Wing)72,6 mm
Thickness of the system (Fixed)60 mm
System Thickness (Wing)60 mm
Reinforced Centre Registration Depth130 mm
Annealed Centre Record Moment of Inertia (Jx)148,02 cm4
Annealed Centre Record Moment of Inertia (Jy)32,25 cm4
Glass Thickness4 – 32 mm
Maximum Wing Length1500 x 2500 mm
Maximum Wing Weight160 Kg

Performance Values

TS EN 12207Air ImpermeabilityNA
TS EN 12208Water TightnessNA
TS EN 12210Wind Load ResistanceNA
TS EN 12210Increased Wind LoadNA

Technical Drawings
