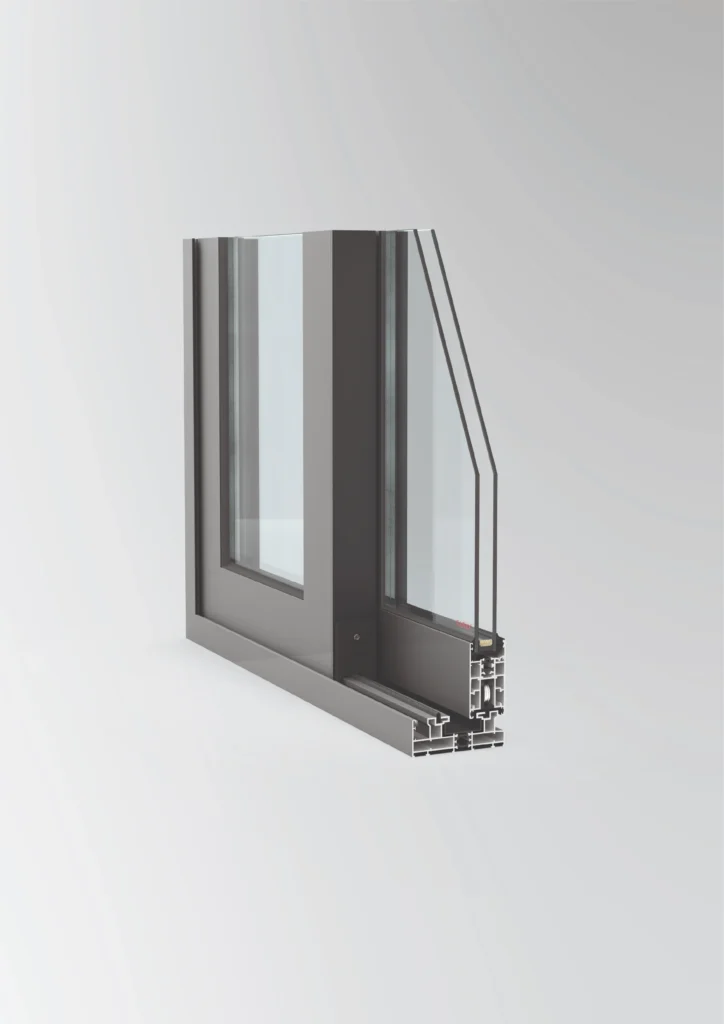

HSS 110

The new generation sliding system HSS 110, developed by SARAY with the aim of meeting the needs and demands of the building sector at the highest level, has been implemented with an innovative design approach that supports more daylight to enter.

The system, which also provides cost control in projects by allowing simple sliding and lift-and-slide opening type sashes to be applied together in the same space under the roof of a single system, stands out with its ease of use.

HSS 110 Hybrid Sliding System has a 110 mm frame depth and the single, 2 or 3 rail options in the HSS 110 Hybrid Sliding System can be up to 6 sashes, allowing large openings in buildings to be easily passed.

In addition to the glass fibre reinforced polyamide heat barriers used in the frame and sash, HSS 110, which supports the provision of an ideal comfort environment in the places where it is used with its EPDM wick structure, provides users with a maximum panoramic view with a minimum profile view with its 45 mm high frame profile, 87 mm and 54 mm wide clamp detail offered as an alternative.

The system, which provides the use of steel rails and additional steel bearings, allows sashes that can reach up to 300 kg. In the system where all opening mechanisms of different brands can be used, multi-point locking can also be done for advanced security. The system, which has a self-fly screen frame profile, also offers the option of fly screen rail profiles that can be installed later.
