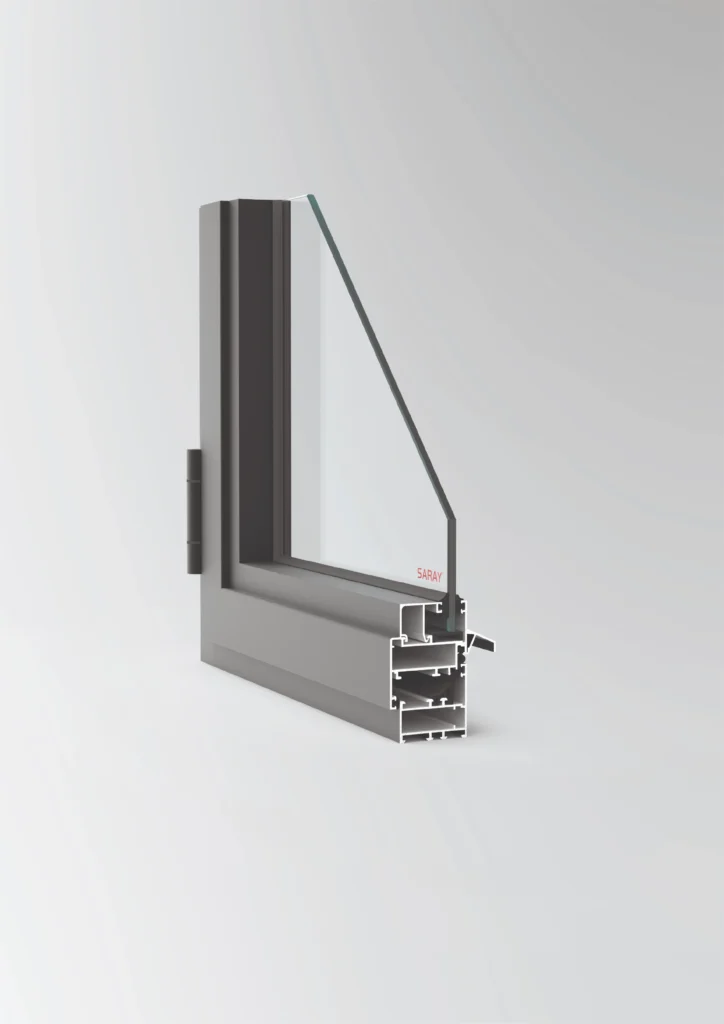

Offering economic solutions in hot climates where the need for insulation is low, S45 is an aesthetic and functional door and window system with a frame width of 45 mm.
In addition to single opening, double opening and pivot opening features in windows, it also allows the use of slam doors, folding sliding doors and parallel sliding doors in doors.
1.5 mm and 2.0 mm alternative profile thicknesses make the system an ideal series for buildings. From 6 mm single glass, up to 32 mm thick glass can be used in the system.
System Visible Width (Fixed) | 45,2 mm |
Apparent Width of the System (Wing) | 63,2 mm |
System Thickness (Fixed) | 45,5 mm |
System Thickness (Wing) | 52 mm |
Glass Thickness | 6 – 32 mm |
Maximum Wing Length | 1500 x 2500 mm |
Maximum Wing Weight | 180 Kg |
TS EN 12207 | Air Impermeability | NA |
TS EN 12208 | Water Sealing | NA |
TS EN 12210 | Wind Load Resistance | NA |
TS EN 12210 | Increased Wind Resistance | NA |
