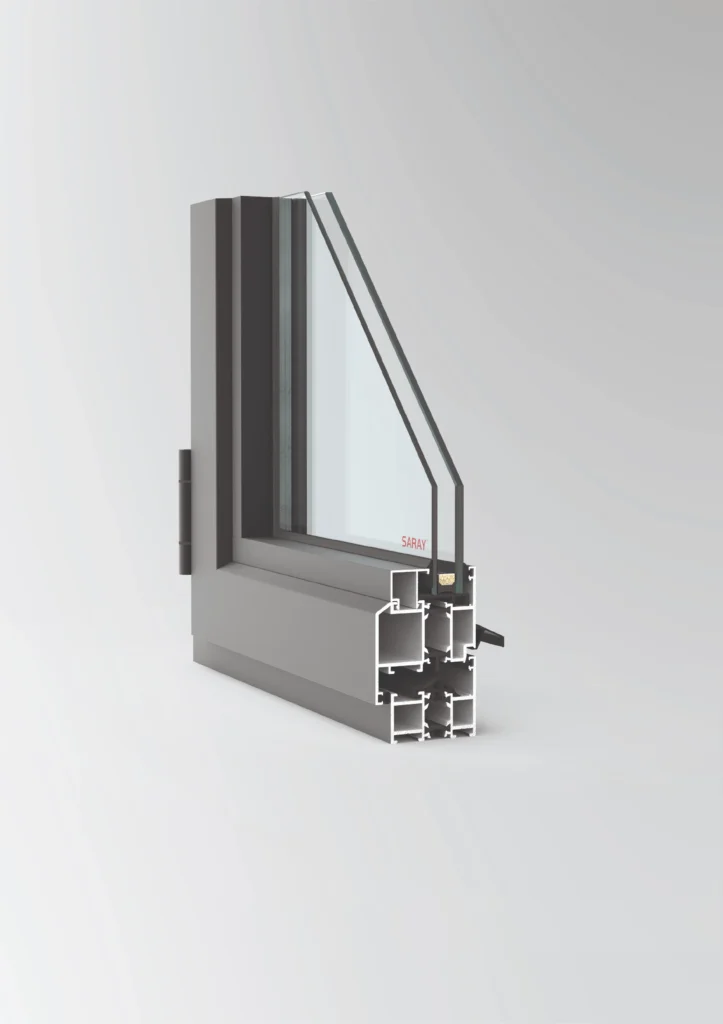

SI 58 Door and Window Systems have a thermally insulated structure that provides high resistance to different climatic conditions and provides high comfort for users in residential and public projects, especially in temperate climate zones such as the Aegean and Mediterranean.
The system has two alternative profile structures with 1.5 mm and 2.0 mm wall thickness and has a frame depth of 55 mm and a sash depth of 65 mm. The SI 58 System, which can provide any desired opening for windows and doors, has a structure suitable for different openings such as inward or outward opening, double opening, transom window. PVC compatible opening mechanisms can also be used.
SI 58, with its durable structure, aesthetics and function
System Visible Width (Fixed) | 46.2 mm |
System Visible Width (Wing) | 64 mm |
System Thickness (Fixed) | 55 mm |
System Thickness (Wing) | 65 mm |
Glass Thickness | 4 – 40 mm |
Maximum Wing Length | 1500 x 2500 mm |
Maximum Wing Weight | 180 Kg |
TS EN 12207 | Air Tightness | NA |
TS EN 12208 | Water Tightness | NA |
TS EN 12210 | Wind Load Resistance | NA |
TS EN 12210 | Increased Wind Resistance | NA |
