PANORAMA

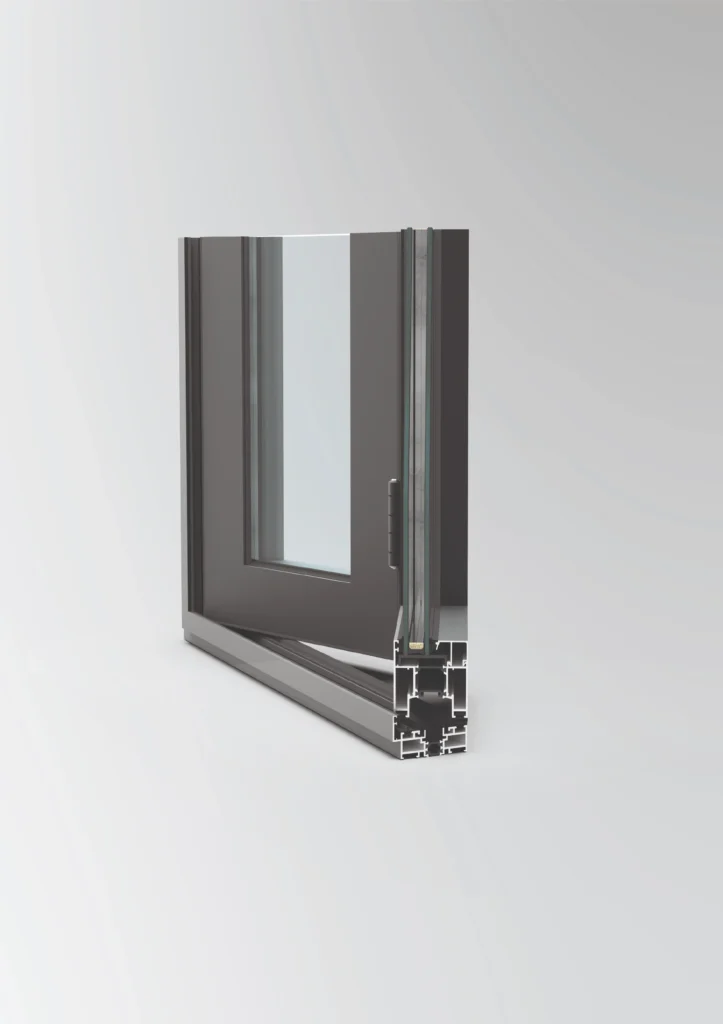

The insulated PANORAMA Folding Door System, which combines a minimal design approach with aesthetic lines, can be applied to modules with 2, 3, 4, 5, 6 and 7 wings with a maximum carrying capacity of 150 kg per wing. The system, which can be used in spaces up to 3 metres high, allows these heavy wings to be collected on the right and left as single-sided or divided into two sides.
It offers high performance and long-lasting functionality to the users with its resistance to external weather conditions, integrated concealed crenellated stream detail and low maintenance cost features.
Technical Specifications
| Apparent Width of the System (Fixed) | 28 mm |
| Apparent Width of the System (Wing) | 82 mm |
| Thickness of the system (Fixed) | 77 mm |
| System Thickness (Wing) | 77 mm |
| Reinforced Centre Registration Depth | 157 mm |
| Annealed Centre Record Moment of Inertia (Jx) | 258 cm4 |
| Annealed Centre Record Moment of Inertia (Jy) | 14 cm4 |
| Glass Thickness | 16 – 52 mm |
| Maximum Wing Length | 3000 mm |
| Heat Barrier Thickness | 20 – 32 mm |
| Maximum Wing Weight | 150 Kg |
Performance Values
| TS EN 12207 | Air Impermeability | NA |
| TS EN 12208 | Water Tightness | NA |
| TS EN 12210 | Wind Load Resistance | NA |
| TS EN 12210 | Increased Wind Resistance | NA |
Technical Drawings
