This calculation is based on 1.0W/m2.K Ug glass filling value.
Door Window Systems | Basic 56 System

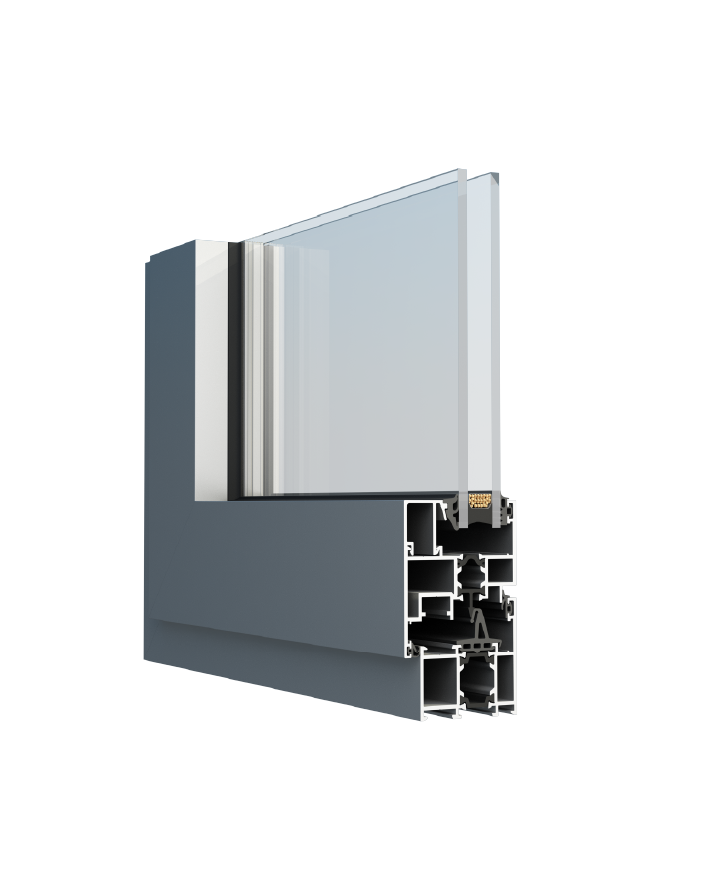

Basic 56
The BASIC 56 KLEIDCO system is designed to allow architects to provide an integrated window and door system; at the same time, the flexibility in design allows for very good thermal and acoustic insulation.
BASIC 56 is a complete price performance system as it is one of the most cost effective thermal insulation products on the market. The only difference between the BASIC 56 system is the Thermal Insulation thickness.
In addition, BASIC 56 has a high quality with certified performance values. Its functionality is maximized with its resistance to different weather conditions, high Static loads and increased safety level. As a result, these values make BASIC 56 superior to its competitors.
In addition to the modern design of BASIC 56, the system also provides all types of inward and outward opening. With the wide range of combinations available, the system meets all requirements.
Technical Specifications
| Visible Width of the System | Vault | 48-80 mm |
| Wing | 42-60 mm | |
| System Case Depth | 56 mm | |
| Wing Depth of the System | 65 mm | |
| Glass Thickness | Vault | 36 mm’e kadar |
| Wing | 46 mm’e kadar | |
| Thermal Insulation | Vault | 20 mm (Polyamid) |
| Wing | 16 mm (Polyamid) | |
Performance Values
| Performance Criteria | Test Standards | Classification |
| Air Impermeability | TS EN 12207 | Class 4 – 600 Pa |
| Water Sealing | TS EN 12208 | E 1200 – 1200 Pa |
| Wind Load Resistance | TS EN 12210 | C3 (1200 Pa) |
| Resistance to Safety Load | TS EN 12210 | Npa |
| Thermal Thermal Insulation | EN 10.077-2 | Npa |
| Acoustic Performance Value | EN 717-1 | Npa |
| Theft Resistance | TS EN 1627-1630 | RC1/RC2 |
Heat Graph
