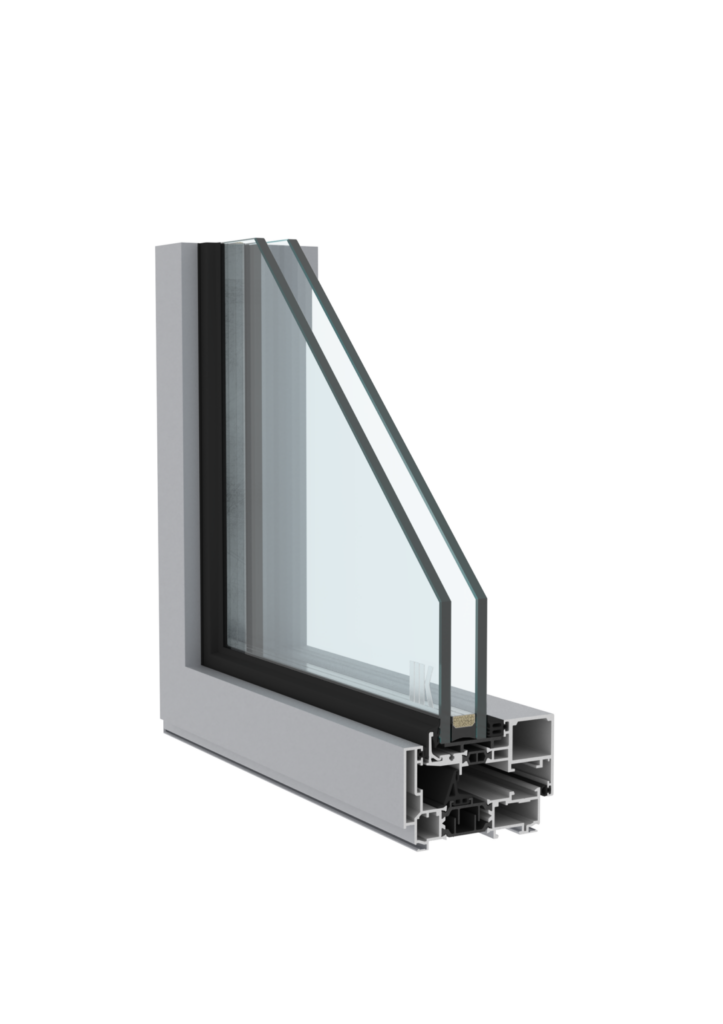

Prime 90 Window
Depending on architectural and aesthetic requirements, it is designed for projects where less profile view and maximum view of the landscape are desired.
Prime Window system is a hidden sash system where all visible widths can be made as 55 mm from the outside. With a 34 mm glass fibre reinforced polyamide barrier and a total frame depth of 92 mm, the system allows the use of desired large openings and different glass combinations.
It provides optimum performance values with the system that provides superior thermal insulation and energy conservation according to the temperature differences of different geographical regions with harsh climatic conditions.
Prime Window brings together efficient solutions for a wide range of functional, architectural and energy requirements in a single system. It is the ideal solution with its high performance, ultra insulation values and first class aluminium architecture. As a result of its superior insulation characteristics, Prime Window reduces energy use in your home.
Technical Specifications
| Visible Surface of the System | 55 mm | |
| System Case Depth | 92 mm | |
| Wing Depth of the System | 85 mm | |
| Glass Thickness | Vault | 58 mm’e until |
| Wing | 40 mm’e until | |
| Heat Insulation | Vault | 34 mm (Polyamid) |
| Wing | ||
Performance Values
| Air Impermeability | TS EN 12207 | Class 4 – 600 Pa |
| Water Tightness | TS EN 12208 | 1050 Pa (Class E1050) |
| Wind Load Resistance | TS EN 12210 | 1600 Pa (Class C4) |
| Resistance to Safety Load | TS EN 12210 | 2400 Pa |
| Thermal Heat Insulation | EN 10.077-2 | Npa |
| Acoustic Performance Value | EN 717-1 | Npa |
| Theft Resistance | TS EN 1627-1630 | RC1/RC2 |
