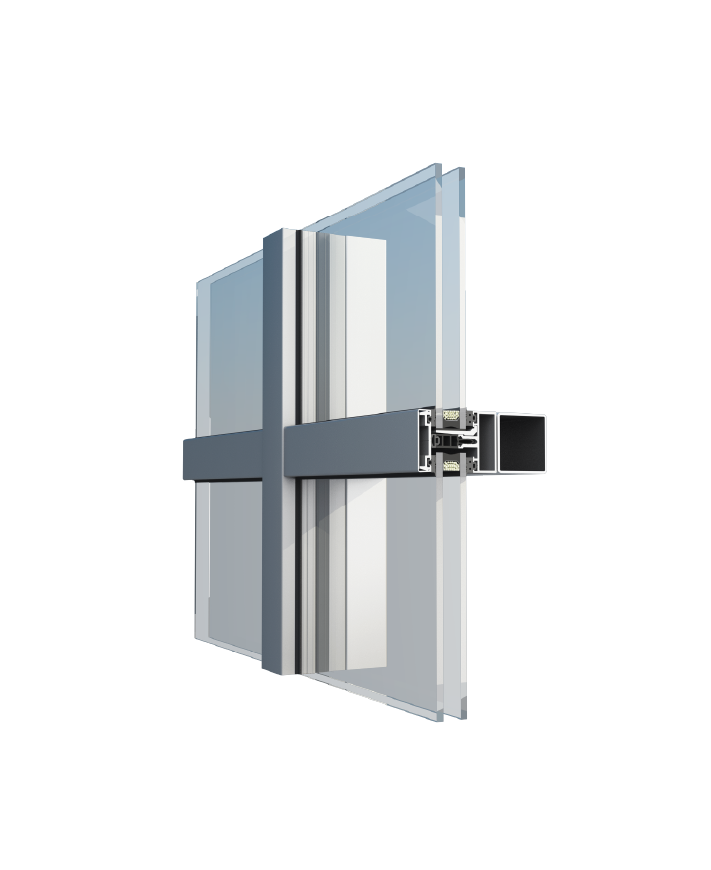

FS 50

FS 50 can be used multifunctionally in combination with other KLEIDCO products and offers a complete facade solution to meet your needs and requirements.

The KLEIDCO facade system FS 50 offers a high degree of flexibility, unlimited design freedom and allows for maximum transparency and attractive design options for facades and skylights. KLEIDCO has also made optimization for production and technical support for application processes part of its service.

The FS 50 façade system meets all the requirements of contemporary architecture with regard to energy performance, KLEIDCO systems have guaranteed their quality with their airtightness, water tightness, wind load and Uw performances.

Technical Specifications
Visible Width of the System 50 mm
Vertical Carrier Profile Depth 18-265
Vertical Carrier Profile Inertia Value Jx 8-4005 cm4
Jy 5-276 cm4
Horizontal Carrier Profile Depth 6-210 mm
Horizontal Carrier Profile Inertia Value Jx 9-810 cm4
Jy 4-71 cm4
Glass Thickness 6- 42 mm
Maximum Sash Length 2500
Maximum Sash Weight 110

Performance Values
TS EN 12152 Air Tightness A4 – 600 Pa
TS EN 12154 Water Tightness RE 750 – 750 Pa
TS EN 13830 Wind Load Resistance 1600 Pa
TS EN 13830 Increased Wind Resistance 2400 Pa
TS EN 14019 Impact Resistance E5 – 475 Joule
EN 10. 077-2 Thermal Thermal Insulation Uw: 0,74 W/m².K

Heat Graph

This calculation is based on 0,60 W/m2.K Ug glass filling value.
