| Visible Width of the System | 60 mm | |
| Vertical Carrier Profile Depth | 60-200 | |
| Vertical Carrier Profile Inertia Value | Jx | 52-1063 cm4 |
| Jy | 32-111 cm4 | |
| Horizontal Carrier Profile Depth | 65-205 | |
| Horizontal Carrier Profile Inertia Value | Jx | 39-601 cm4 |
| Jy | 26-70 cm4 | |
| Glass Thickness | 6-42 mm | |
| Maximum Wing Length | 2500 | |
| Maximum Wing Weight | 110 | |
Facade Systems | FS 60 System

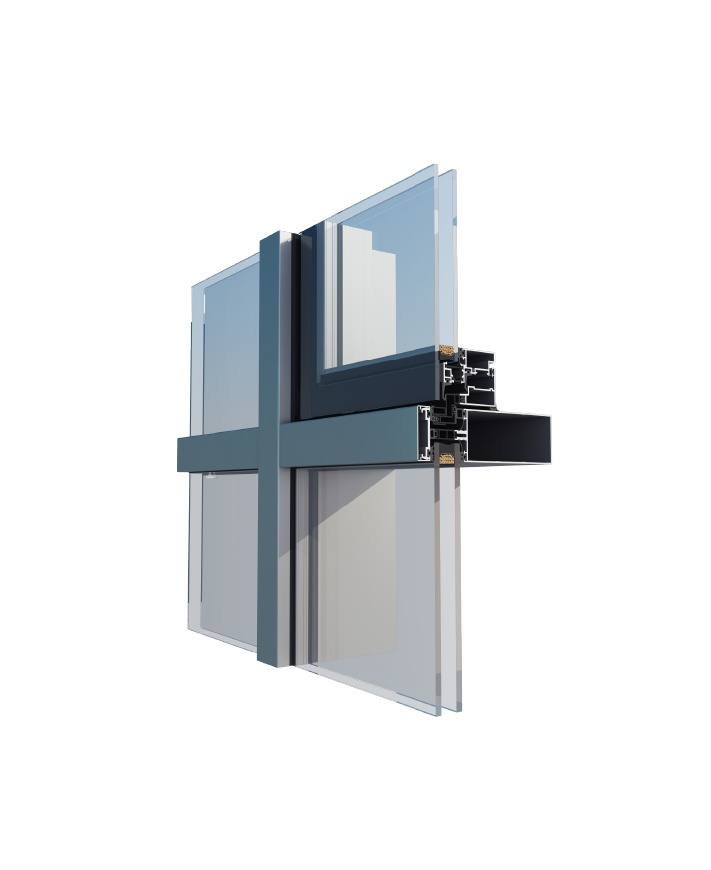

FS 60
FS 60 is a facade system with high seismic performance that provides high flexibility and strength to different buildings and meets the requirements of contemporary construction and architecture.
FS60 is one of the other KLEIDCO systems and offers a complete façade solution to meet the demands of your project.
The KLEIDCO Façade system Fs60 allows for attractive design options with a high degree of flexibility.
In terms of structural performances, KLEIDCO systems provide high performance values in terms of air permeability, water tightness and wind pressure and Uf.
Technical Specifications
Performance Values
| TS EN 12152 | Air Impermeability | A4 – 600 Pa |
| TS EN 12154 | Water Sealing | RE 750 – 750 Pa |
| TS EN 13830 | Wind Load Resistance | 960 Pa |
| TS EN 13830 | Increased Wind Resistance | 1440 Pa |
| TS EN 14019 | Impact Resistance | E5 – 475 Joule |
| EN 10.077-2 | Thermal Thermal Insulation | Uw: 0,70 W/m².K |
Heat Graph
This calculation is based on 1.0W/m2.K Ug glass filling value.
