| Clamp Visible Surface | 35 mm | |
| System Case Depth | Double Rail | 145 mm |
| 4 Ray | 301 mm | |
| Wing Depth of the System | 50 mm | |
| Glass Thickness | Vault | 36 mm’ye until |
| Thermal Insulation | 30 mm | |
| Maximum Wing Weight | 700 | |
| Maximum Wing Height | 4000 mm | |
Sliding Systems | Prime Slide System

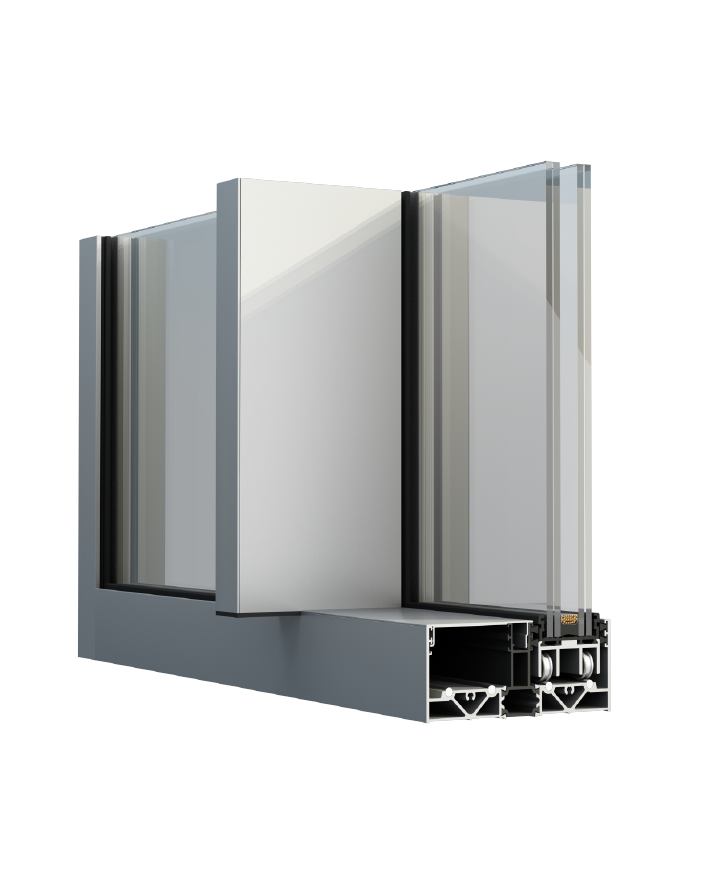

Prime Slide
In the Prime system, the side frame and bottom frame can be completely embedded in the floorboards. In this way, 20% more transparent area and view is provided compared to standard systems.
The purpose of the Prime sliding system is to provide and connect the objective interaction between the indoor and outdoor environment. By embedding the frame completely in the ground, the users have the possibility of a ground transition between inside and outside and the sliding system is no longer a barrier between inside and outside. With the steel bearings embedded in the frame, it is possible to make wide and high wings up to 12 square metres. With its EPDM wick structure, air, water tightness, wind load resistance and thermal performance values are provided at the highest level. The system allows the use of glass up to 36 mm with profiles with wall thickness between 1.8 mm and 2 mm.
Technical Specifications
Performans Değerleri
| Performance Criteria | Test Standards | Classification |
| Air Impermeability | TS EN 12207 | Class 4 – 600 Pa |
| Water Tightness | TS EN 12208 | Sınıf 9A – 600 Pa |
| Wind Load Resistance | TS EN 12210 | 1000 Pa |
| Thermal Thermal Insulation | TS EN 12210 | 1500 Pa |
| Acoustic Performance Value | EN 10.077-2 | Npa |
| Akustik Performans Değeri | EN 717-1 | Npa |
| Theft Resistance | TS EN 1627-1630 | RC1/RC2 |
