| Apparent Width of the System | Vault | 80 mm |
| Wing | 105 mm | |
| Clamp Visible Surface | 60 mm | |
| System Case Depth | 155 mm | |
| Wing Depth of the System | 72 mm | |
| Glass Thickness | 52 mm’ye until | |
| Thermal Insulation | Vault | 34 mm |
| Wing | 32 mm | |
| Maximum Wing Weight | 200Kg | |
| Maximum Wing Height | 2800 mm | |
| Maximum Wing Width | 1800 mm | |
Sliding Systems | Smart Slide System

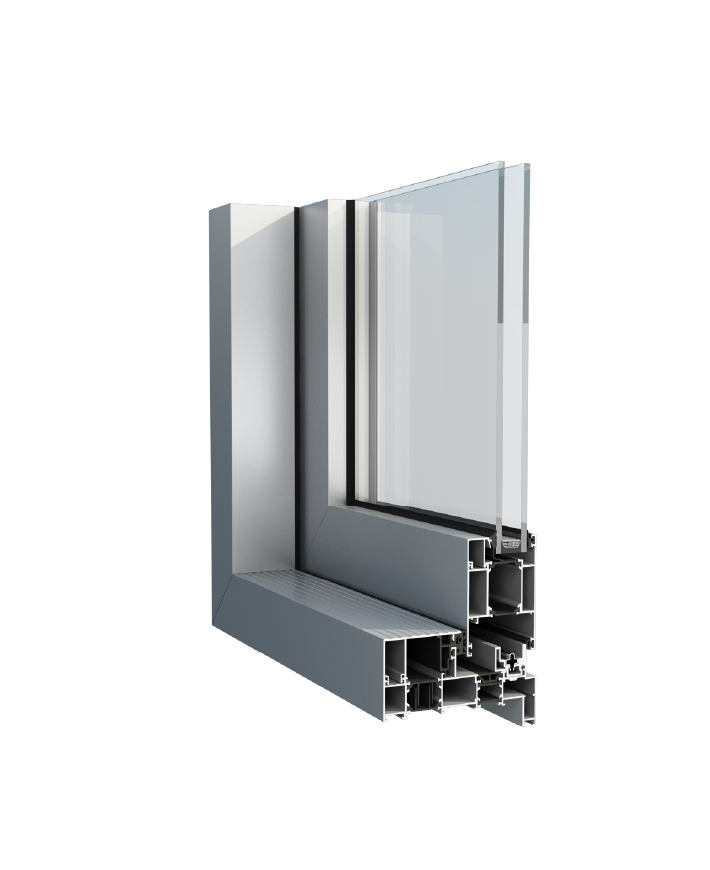

Smart Slide
This system combines the blending of a sliding system and a window system, as well as efficiency and aesthetics. It provides the space saving advantage of a sliding system and the high performance features of a window at the same time.
The excellent values of outstanding air permeability, high water tightness and resistance to wind load make SMART SLIDE an ideal system to be used in high-rise projects.
Thanks to its EPDM sealed design, SMART SLIDE has the best water tightness test result up to
E1500 / 1500 Pa in tests carried out in accredited test laboratories according to European Norms. The system also allows multiple locking mechanisms.
Technical Specifications
Performance Values
| Performance Criteria | Test Standards | Classification |
| Air Impermeability | TS EN 12207 | Class 4 – 600 Pa |
| Water Tightness | TS EN 12208 | E 1500 – 1500 Pa |
| Wind Load Resistance | TS EN 12210 | C5 (2000 Pa) |
| Thermal Thermal Insulation | TS EN 12210 | 3000 Pa |
| Acoustic Performance Value | EN 10.077-2 | Uw: 1,07 W/m2.K |
| Akustik Performans Değeri | EN 717-1 | Na |
| Theft Resistance | TS EN 1627-1630 | RC1/RC2 |
Heat Graph
This calculation is based on a glass filling value of 0.60 W/m2.K Ug.
