| System Frame Depth | 62 mm |
| System Visible Edge Width | 35 mm |
| System Sash Depth | 50 mm |
| System Thickness | 145 mm |
| Glass Thickness | 36 mm |
| Minimum Sash Length | 3000 mm |
| Maximum Sash Length | 4000 mm |
| Thermal Barrier Thickness | 30 mm |
| Maximum Sash Weight | 950 kg |
Sliding Systems | Vision Slide System

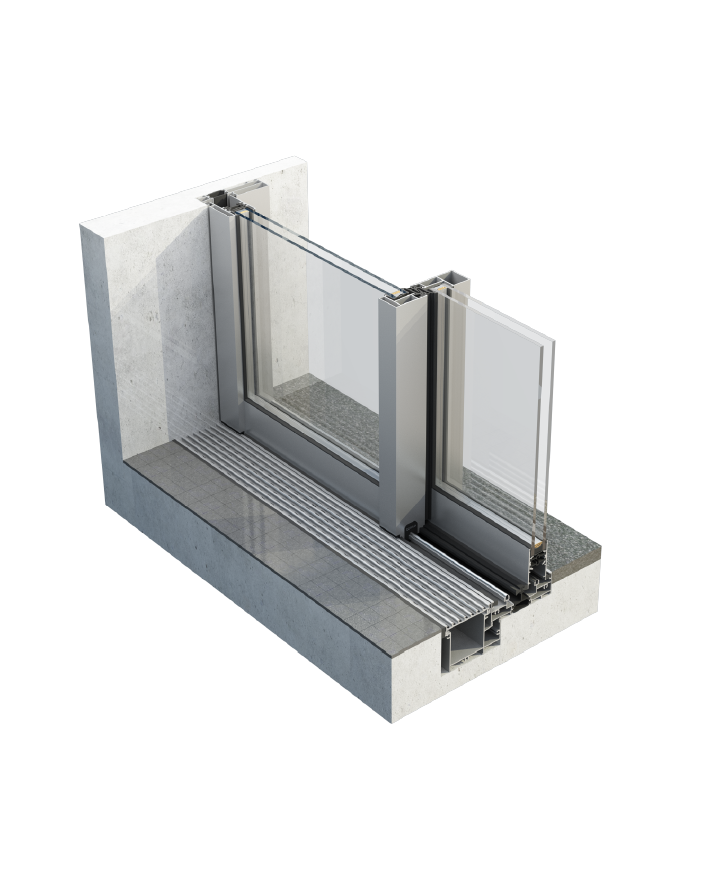

Vision Slide
In the Vision Slide Series, the ability of the frames to be embedded in the floor and the specially designed water channel create a perfect appearance on the floor.
The fully recessed frame provides a seamless transition on the floor, giving users a comfortable transition between indoors and outdoors.
It offers maximum visibility with its slim frame design. Vision Slide also allows the application of insect screens with 90-degree internal and external rotations. The frame, which has the ability to hide the sash profiles inside the walls, seamlessly integrates indoor and outdoor spaces. With its special gasket structure and fibreglass polyamide profile features, the system provides superior insulation values in both hot and cold weather, providing high energy savings in your spaces.
Technical Information
Performance Information
| TS EN 12207 | Air Tightness | NA |
| TS EN 12208 | Water Tightness | NA |
| TS EN 12210 | Wind Load Resistance | NA |
| TS EN 12210 | Increased Wind Resistance | NA |
| EN 10.077-2 | Thermal Heat Insulation | Uw: 0,85 W/m2.K |
